Under-Floor TWC Removal/Installation

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle on a lift.
  2. Remove the under-floor TWC (A).

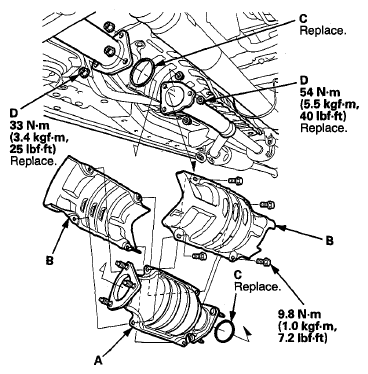

    Fig 1: Converter Cover And Related Replacement Components With Torque Specifications
    G08052619Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the converter cover (B).
  4. Install the parts in the reverse order of removal with new gaskets (C) and new self-locking nuts (D).
