Water Outlet Removal And Installation: Removal

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Drain the engine coolant (see COOLANT REPLACEMENT ).
Remove the air cleaner housing assembly (see AIR CLEANER REMOVAL/INSTALLATION ).

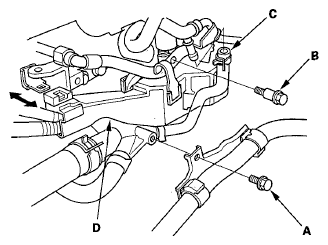

Remove the heater hose clamp bracket mounting bolt (A) and the harness holder mounting bolt (B).

Fig 1: Identifying Heater Hose Clamp Bracket Mounting Bolt, Harness Holder Mounting Bolt, Water Bypass Hose & Harness Holder
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the water bypass hose (C), then remove the harness holder (D) from the bracket.

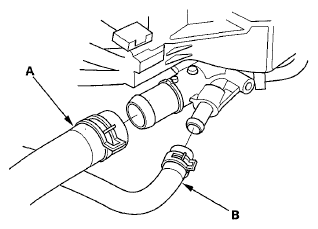

Disconnect the upper radiator hose (A) and the water bypass hose (B).

Fig 2: Identifying Upper Radiator Hose & Water Bypass Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.

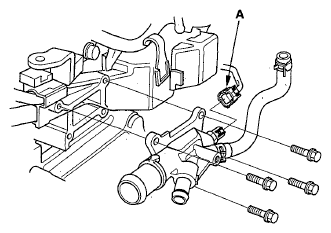

Disconnect the engine coolant temperature (ECT) sensor 1 connector (A), then remove the water outlet.

Fig 3: Identifying Engine Coolant Temperature (ECT) Sensor 1 Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove ECT sensor 1 (A) and the water bypass hose (B).

Fig 4: Identifying ECT Sensor 1 & Water Bypass Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.
