Thermostat Housing Removal And Installation: Removal

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Drain the engine coolant (see COOLANT REPLACEMENT ).
Remove the coolant reservoir.

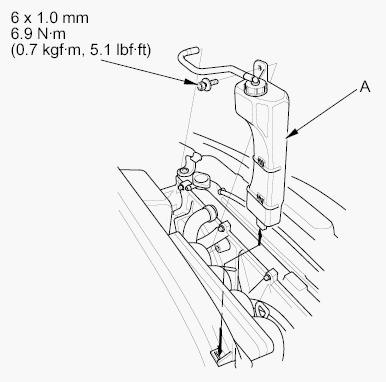

Fig 1: Identifying Coolant Reservoir
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the harness holder mounting bolt, then remove the harness holder (A) from the bracket.

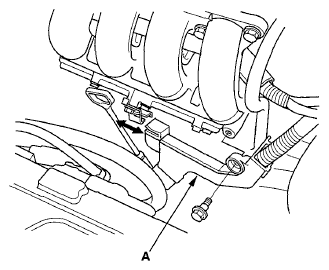

Fig 2: Identifying Harness Holder & Mounting Bolt
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the lower radiator hose (A), the heater hose (B), and the water bypass hoses (C).

Fig 3: Identifying Lower Radiator Hose, Heater Hose & Water Bypass Hoses
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the thermostat housing assembly (D), then remove the thermostat (E).
