Thermostat Housing Removal And Installation: Installation

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

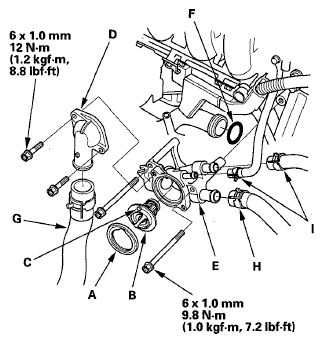

Install the new rubber seal (A) onto the thermostat, then install the thermostat (B) with pin (C) up, and install the thermostat cover (D).

Fig 1: Rubber Seal, Thermostat, Pin & Thermostat Cover With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the thermostat housing assembly (E) with a new O-ring (F).
Install the lower radiator hose (G), the heater hose (H), and the water bypass hoses (I).

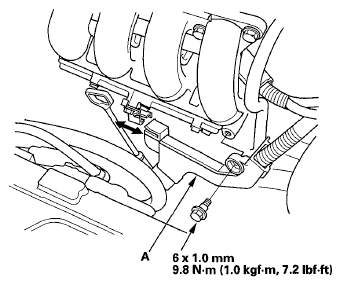

Install the harness holder (A) to the bracket.

Fig 2: Harness Holder & Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the coolant reservoir.

Fig 3: Coolant Reservoir & Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Refill the radiator with engine coolant, then bleed the air from the cooling system (see step 8).
Clean up any spilled engine coolant.
