Fan, Fan Motor, And Shroud Removal And Installation: Removal

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Remove the coolant reservoir.

Fig 1: Identifying Coolant Reservoir
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the radiator fan motor connector (A), then remove the harness clamp (B).

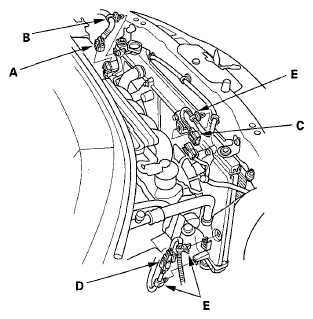

Fig 2: Identifying Radiator Fan Motor Connector, Harness Clamp, Condenser Fan Motor Connector, A/C Compressor Clutch Connector & Harness Clamps
Courtesy of AMERICAN HONDA MOTOR CO., INC.
With A/C: Disconnect the condenser fan motor connector (C) and the A/C compressor clutch connector (D), then remove the harness clamps (E).
Remove the radiator upper brackets.

Fig 3: Identifying Radiator Upper Brackets
Courtesy of AMERICAN HONDA MOTOR CO., INC.
With A/C: Remove the condenser fan shroud assembly (A) and the radiator fan shroud assembly (B) from the radiator, then remove the condenser fan shroud assembly from the vehicle.

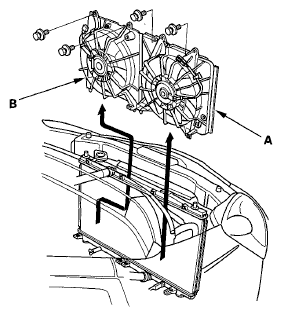

Fig 4: Identifying Condenser Fan Shroud Assembly & Radiator Fan Shroud Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the radiator fan shroud assembly from right side of the engine compartment.
Disassemble the fan shrouds.

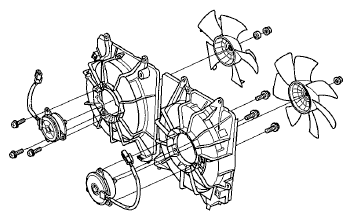

Fig 5: Identifying Fan Shrouds
Courtesy of AMERICAN HONDA MOTOR CO., INC.
