Fan, Fan Motor, And Shroud Removal And Installation: Installation

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Assemble the fan shrouds.

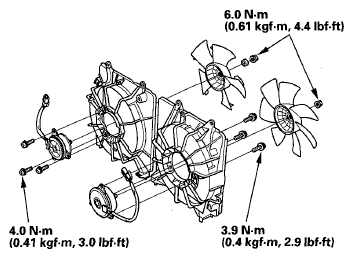

Fig 1: Fan Shrouds & Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the radiator fan shroud assembly (A).

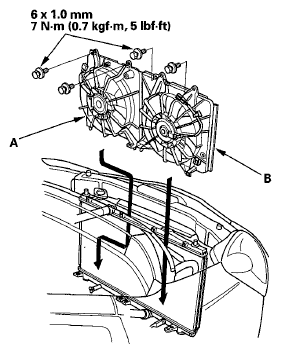

Fig 2: Condenser Fan Shroud Assembly & Radiator Fan Shroud Assembly With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
With A/C: Install the condenser fan shroud assembly (B).
Install the radiator upper brackets.

Fig 3: Radiator Upper Brackets & Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the radiator fan motor connector (A), then install the harness clamp (B).

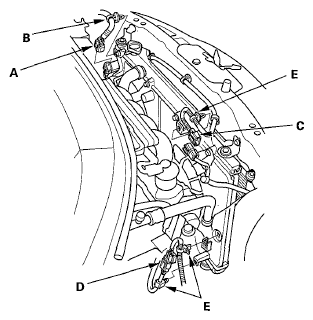

Fig 4: Identifying Radiator Fan Motor Connector, Harness Clamp, Condenser Fan Motor Connector, A/C Compressor Clutch Connector & Harness Clamps
Courtesy of AMERICAN HONDA MOTOR CO., INC.
With A/C: Connect the condenser fan motor connector (C) and the A/C compressor clutch connector (D), then install the harness clamps (E).
Install the coolant reservoir.

Fig 5: Coolant Reservoir Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
