Millimeter Wave Radar: Notes
WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

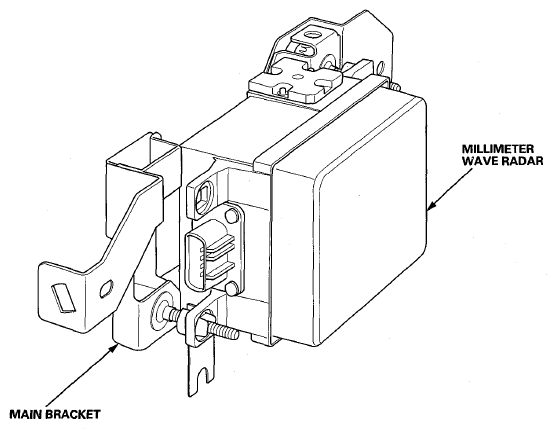

The millimeter wave radar is installed on the main bracket attached to the front bulkhead. The main bracket allows the radar angle to be adjusted ±3 degrees vertically by moving the main bracket adjusters.
