Vertical Aiming

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When the millimeter wave radar is adjusted on ground that has more than 1 degree of horizontal slope (drainage slope), the vertical aiming cannot be adjusted correctly. Check the levelness of the ground, and adjust the angle of millimeter wave radar to be parallel to that of the ground, lay a ruler (at least 12") or other flat straight object on the ground and put the level on top to confirm the levelness of the ground.
  1. Remove the front bulkhead cover (see FRONT BULKHEAD COVER REPLACEMENT ).
  2. Put the level (A) on the aiming pad (B) of the millimeter wave radar.

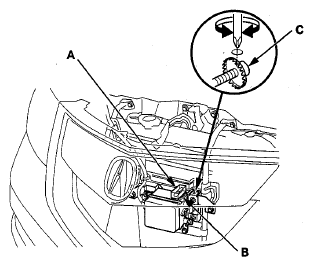

    Fig 1: Identifying Level, Aiming Pad And Vertical Adjusting Bolt
    G08058683Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Turn the vertical adjusting bolt (C) on the driver's side with a screwdriver, and adjust the angle of millimeter wave radar so that the air bubble in the level is centered.
