Distance Switch Test

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

Remove the driver's airbag (see DRIVER'S AIRBAG REPLACEMENT ).
Disconnect the 20P connector (A) from the cable reel.

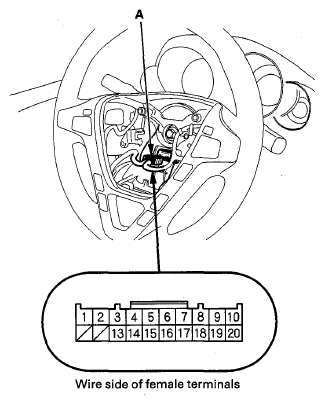

Fig 1: Identifying 20P Connector On Cable Reel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the 20P connector terminals in each switch position according to the table.

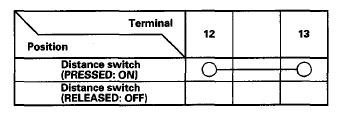

Fig 2: Identifying 20P Connector Terminals In Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the distance switch (see DISTANCE SWITCH TEST ).
Use a diode tester between the 20P connector terminals in each switch position according to the table.

Fig 3: Identifying Diode Tester Between 20P Connector Terminals And Switch In Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the diode test is not as specified, replace the distance switch (see DISTANCE SWITCH TEST ).
