DTC 113: Lost Communication with the Gauge Control Module
WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
- Do the gauge control module self-diagnostic function (see
SELF-DIAGNOSTIC FUNCTION
).
Is the gauge control module OK?
YES -Go to step 2.
NO -Replace the gauge control module, and recheck.
- Clear the DTCs with the HDS (see HOW TO CLEAR DTCS ).
- Turn the ignition switch to ON (II), then wait for 10 seconds.
- Check for DTCs with the HDS (see HOW TO CLEAR DTCS
).
Is DTC 113 indicated?
YES -Go to step 5.
NO -Intermittent failure, the system is OK at this time.
- Turn the ignition switch to LOCK (0).
- Disconnect the ACC unit 20P connector.
- Disconnect gauge control module connector A (12P).

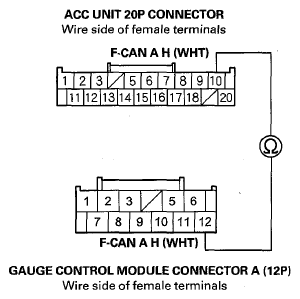

- Check for continuity between ACC unit 20P connector terminal No. 10 and gauge control module connector A (12P) terminal No. 12.Fig 1: Checking Continuity Between ACC Unit 20P Connector And Gauge Control Module Connector A (12P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES -Go to step 9.
NO -Repair an open in the wire between the ACC unit and the branch of the F-CAN A line (F-CAN A H).

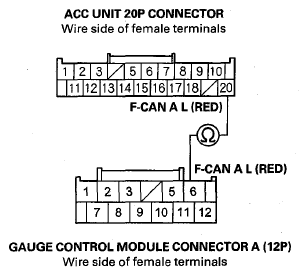

- Check for continuity between ACC unit 20P connector terminal No. 20 and gauge control module connector A (12P) terminal No. 6.Fig 2: Checking Continuity Between ACC Unit 20P Connector And Gauge Control Module Connector A (12P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES -Faulty gauge control module; replace the gauge control module (see CONNECTOR TO FUSE/RELAY BOX INDEX ).
NO -Repair an open in the wire between the ACC unit and the branch of the F-CAN A line (F-CAN A L).
