Brake Fluid Pressure Sensor Removal/Installation

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Do not spill brake fluid on the vehicle; it may damage the paint; if brake fluid gets on the paint, wash it off immediately with water.
  • To prevent dripping brake fluid, cover disconnected hose joints with rags or shop towels.
  • Do not twist the brake hose and line when removed.
  1. Drain the brake fluid.
  2. Disconnect the 3P connector (BLU) (A) from the left front brake fluid pressure sensor (B).

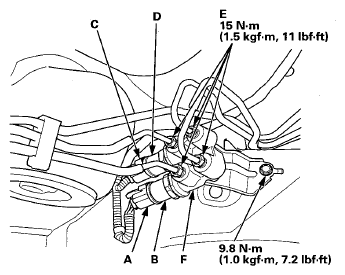

    Fig 1: Identifying Brake Fluid Pressure Sensor And Related Components
    G08058695Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the 3P connector (GRY) (C) from the right front brake fluid pressure sensor (D).
  4. Remove the brake lines (E) from the brake line 4-way joint (F).
  5. Remove the brake line 4-way joint.
  6. Remove the brake fluid pressure sensor bracket (A).
    Fig 2: Identifying Brake Fluid Pressure Sensor Bracket
    G08058696Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Remove the left (A) and right (B) front brake fluid pressure sensors from the brake line 4-way joint (C).
    Fig 3: Identifying Left And Right Front Brake Fluid Pressure Sensor, 4-Way Joint, O-Rings
    G08058697Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Install the parts in the reverse order of removal with new O-rings (D).
    NOTE: Make sure the connector colors and brake fluid pressure sensor locations are correct.
  9. After installation, refill the brake fluid, and bleed the brake system (see MAJOR ADJUSTMENT (TO BE DONE WHEN REPLACING PARKING BRAKE SHOES AND AFTER LINING SURFACE BREAK-IN) ).
  10. Do these checks:
    • Check the brake hose and line joint for leaks, and tighten if necessary.
    • Check the brake hoses for interference and twisting.
  11. Connect the HDS to the data link connector.
  12. Turn the ignition switch to ON (II).
  13. Press the MAIN switch ON.
  14. Clear the DTCs with the HDS (see HOW TO CLEAR DTCS  ).
  15. Select ADAPTIVE CRUISE CONTROL (ACC) from ACC/CMBS menu, then enter FUNCTION TEST.
  16. Activate BRAKE ACTUATOR 3 from the FUNCTION TEST.
    NOTE: BRAKE ACTUATOR 3 operates the adaptive cruise control brake in this order (pressurization - stop-pressurization-stop). It takes about 6 seconds.
  17. Check for DTCs with the HDS (see HOW TO CLEAR DTCS  ).
    • If there is a DTC, go to the indicated DTCS TROUBLESHOOTING .
    • If there is no DTC, the brake fluid pressure sensor replacement is complete.
