Adaptive Cruise Control (ACC) Combination Switch Test: Notes

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

Remove the driver's airbag (see DRIVER'S AIRBAG REPLACEMENT ).
Disconnect the 20P connector (A) from the cable reel.

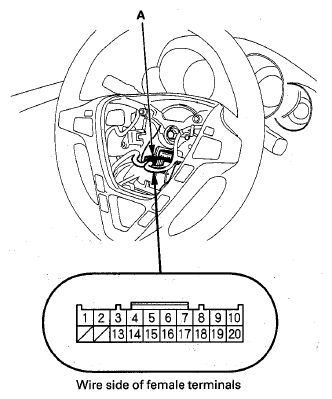

Fig 1: Identifying 20P Connector On Cable Reel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table.

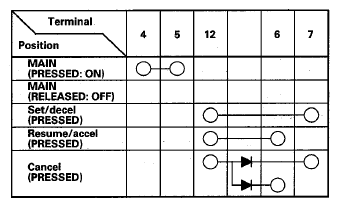

Fig 2: Identifying ACC Switch Position In Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the adaptive cruise control (ACC) combination switch.
Use a diode tester between the terminals in each switch position according to the table.

Fig 3: Identifying Diode Tester Between Terminals And Switch Position In Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the diode test is not as specified, replace the adaptive cruise control (ACC) combination switch (see ADAPTIVE CRUISE CONTROL (ACC) COMBINATION SWITCH/DISTANCE SWITCH REMOVAL/INSTALLATION ).
