Stabilizer Link Removal/Installation

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle (see LIFT AND SUPPORT POINTS ).
  2. Remove the front wheel.
  3. Remove the flange nuts (A) while holding the respective joint pin (B) with a hex wrench (C), then remove the stabilizer link (D).

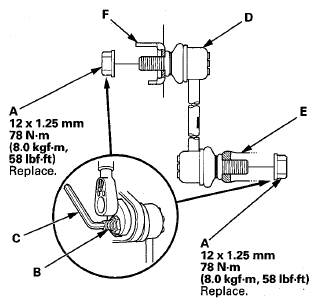

    Fig 1: Removing Stabilizer Link
    G08054959Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the stabilizer link on the stabilizer bar (E) and the damper (F) with the joint pins set at the center of their range of movement.
  5. Install the new flange nuts, and tighten them to the specified torque while holding the respective joint pin with a hex wrench.
  6. Clean the mating surfaces between the brake disc and the inside of the wheel, then install the front wheel.
