Bushing Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the self-locking nut (A), then remove the rear side of lower arm bushing with bracket (B).

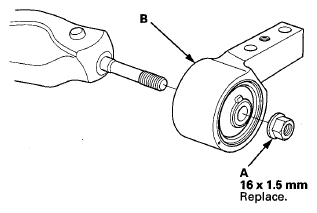

Fig 1: Identifying Self-Locking Nut And Lower Arm Bushing With Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Align the angle of the lower arm center line (A) and the under edge line (B) of the bushing bracket as shown.

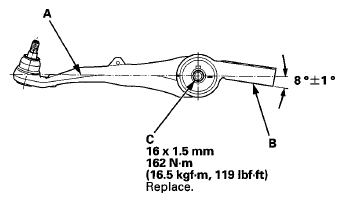

Fig 2: Aligning Angle Of Lower Arm Center Line And Under Edge Line Of Bushing Bracket With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install a new self-locking nut (C), then tighten the nut to the specified torque.
