Exploded View

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

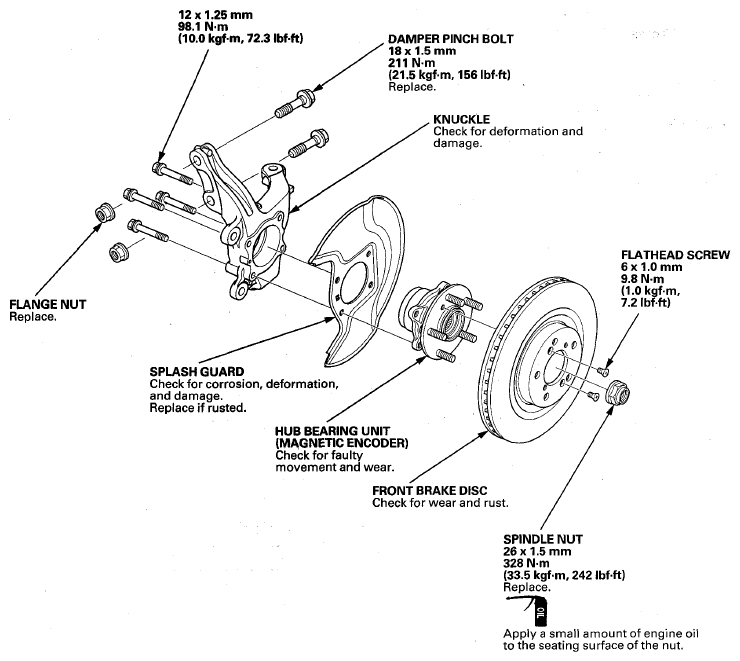

Fig 1: Exploded View Of Knuckle/Hub Bearing Unit With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Ball Joint Thread Protector, 12 mm 07AAF-SDAA100
Ball Joint Remover, 28 mm 07MAC-SL0A202
Ball Joint Thread Protector, 14 mm 071AF-SZNA100
Ball Joint Remover, 32 mm 07MAC-SL0A102

NOTE: Refer to the Exploded View as needed during the following procedure.
