Exploded View-With active damper system

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

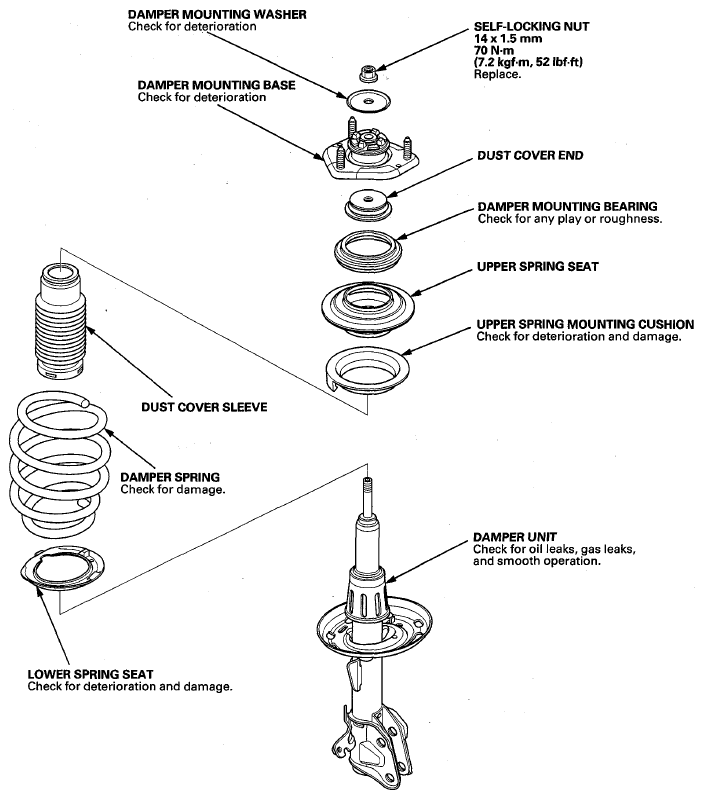

Fig 1: Exploded View Of Damper/Spring - With Active Damper System With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE:

When compressing the damper spring, use a commercially available strut spring compressor (Branick MST-580A or Model 7200, or equivalent) according to the manufacturer's instructions.
Except where called out, the illustrations are shown without active damper system.
Refer to the Exploded View as needed during the following procedure.
