NOTE:

Take care not to scratch the covers, the roof rail or the body.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
When using a flat-tip screwdriver, wrap it with protective tape to prevent damage.

Pry up on the front cover (A) with a trim tool to detach the clips and the rib (B) from the front bracket (C), then remove the cover by pulling the cover forward.

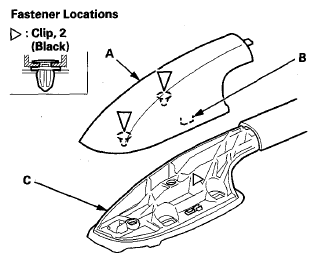

Fig 1: Identifying Roof Rail Fastener Locations
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pry up on the rear cover (A) with a trim tool to detach the clips from the rear bracket (B), then remove the cover by pulling the cover rearward.

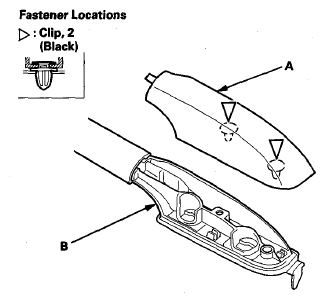

Fig 2: Locating Rear Cover And Rear Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the roof rail (A) and the center bracket (B).
1. Using a trim tool, pry the notch (C), then remove the roof rail bar cap (D).
2. Using a TORX T30 bit, remove the nuts (E) from the front bracket (F) and the rear bracket (G).
3. Using a TORX T30 bit, remove the bolts (H), then remove the roof rail.
4. Remove the center cover (I), and using a TORX T30 bit, remove the nuts (J), then remove the center bracket.

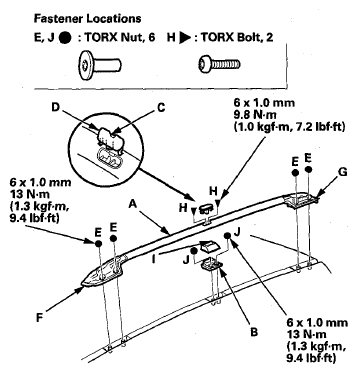

  Fig 3: Locating Roof Rail And Center Bracket With Torque Specifications
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the roof rail in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
