Rear Gutter Cover Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Acura Tool and Equipment Program, 888-424-6857

NOTE:

Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
Take care not to scratch the body.

Open the tailgate.
Separate the double-sided adhesive tape (A), and use a trim tool to detach the clip (B) and the pins (C) of the rear gutter cover (D).

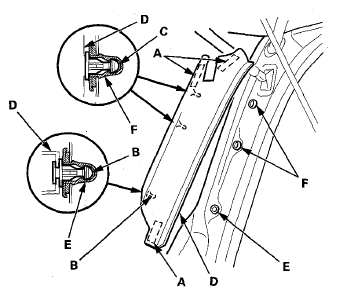

Fig 1: Locating Double-Sided Adhesive Tape, Clip, Pins And Rear Gutter Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the clip and the grommets (E, F) are damaged or stress-whitened, replace them with new ones.
Install the rear gutter cover in the reverse order of removal, and note these items:
- Scrape off the remaining double-sided adhesive tape from the cover and body, then clean the cover and body surface with a sponge dampened in isopropyl alcohol.
- Apply new adhesive tape (A) to the rear gutter cover (B).
- Push the adhesive areas, the clips and the pins into place securely.
  Adhesive tape: Thickness 1.5 mm (0.06 in)

  Width 12 mm (0.47 in)

  Length 50 mm (2.0 in)

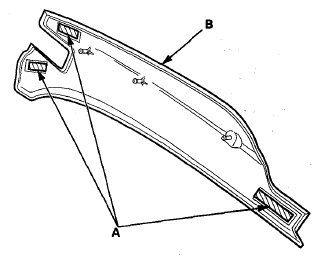

  Fig 2: Locating Adhesive Tape And Rear Gutter Cover
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
