Rear Door Protection Tape Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slowly peel up the old rear door protection tape.
  2. Clean the door bonding surface with a sponge dampened in isopropyl alcohol. After cleaning, keep oil, grease, and water from getting on the surface.
  3. Peel the adhesive backing from the rear door protection tape.
  4. Align the rear door protection tape (A) with the edge of the door (B), then press the tape into place.

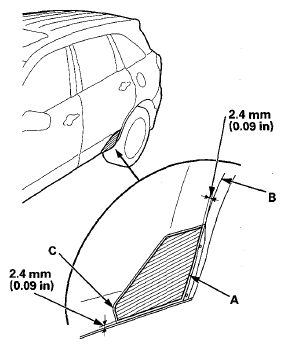

    Fig 1: Aligning Rear Door Protection Tape With Edge Of Door
    G08053637Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the application backing (C).
