Front Grille Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC Trim Tool Set SOJATP2014*

* Available through the Acura Tool and Equipment Program, 888-424-6857

NOTE:

Take care not to scratch the front bumper or the body.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

Remove the front bulkhead cover (see FRONT BULKHEAD COVER REPLACEMENT ).
Remove the front grille (A).
1. Remove the bolts (B) and detach the clips (C, D).
2. With ACC: Remove the harness clip (E).
3. Release the hooks (F) of the grille from the front bumper (G) by pulling the grille forward.
  NOTE: To release the clips (D), pry up on the center pin at the notch (H).

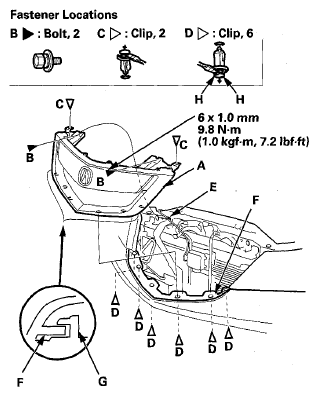

  Fig 1: Front Grille Fastener Location With Torque Specifications
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the grille in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.
