Side Engine Mount Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the auxiliary under-hood fuse/relay box (A) from the mounting bracket (B), then remove the bolt (C).

Fig 1: Locating Auxiliary Under-Hood Fuse/Relay Box, Mounting Bracket And Bolt
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bracket (A), free the front receiver line (B) from the clip (C) and remove the A/C suction line mounting bracket bolt (D).

Fig 2: Locating Bracket, Front Receiver Line, Clip And A/C Suction Line Mounting Bracket Bolt
Courtesy of AMERICAN HONDA MOTOR CO., INC.

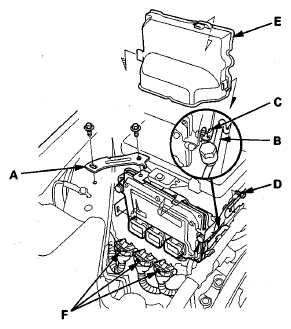

Remove the PCM cover (E), then disconnect the PCM connectors (F).

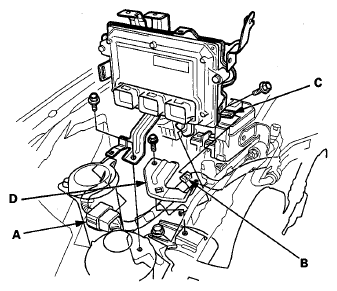

Remove the engine wire harness connector (A) and the harness clamp (B) from the PCM bracket (C).

Fig 3: Locating Engine Wire Harness Connector, Harness Clamp And PCM Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the PCM with the bracket, then remove the harness bracket (D).
Remove the coolant reservoir from the bracket.
Lift and support the engine with a jack and a wood block under the oil pan.
Remove the ground cable bracket (A), then remove the upper half of the side engine mount bracket (B).

Fig 4: Locating Ground Cable Bracket And Upper Half Of Side Engine Mount Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the side engine mount (A).

Fig 5: Locating Side Engine Mount
Courtesy of AMERICAN HONDA MOTOR CO., INC.
