Side Engine Mount Removal and Installation: Installation

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Install the side engine mount (A).

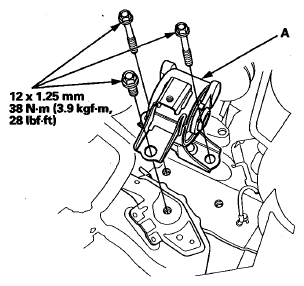

Fig 1: Locating Side Engine Mount With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Loosely install the upper half of the side engine mount bracket (A).

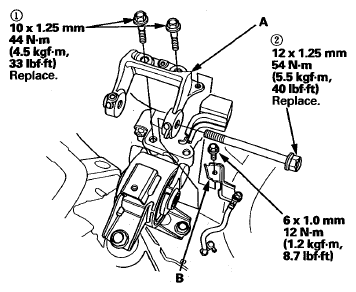

Fig 2: Locating Upper Half Of Side Engine Mount Bracket With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the ground cable bracket (B).
Remove the jack and the wood block.
Tighten the mounting bolts in the numbered sequence shown.
Install the coolant reservoir to the bracket.
Install the harness bracket (A), then install the PCM with the bracket (B).

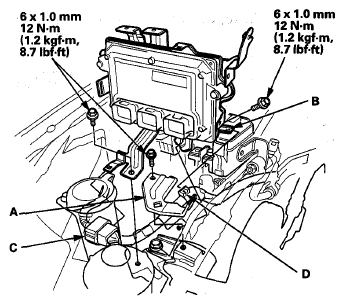

Fig 3: Locating Harness Bracket, PCM And Bracket With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the engine wire harness connector (C) and the harness clamp (D) to the PCM bracket.
Connect the PCM connectors (A), then install the PCM cover (B).

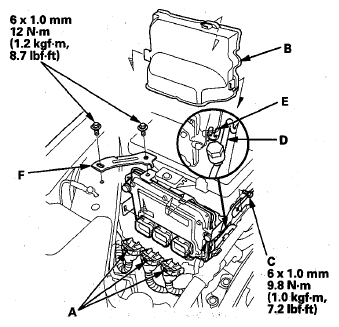

Fig 4: Installing PCM Cover With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the A/C suction line mounting bracket bolt (C), front receiver line (D) to the clip (E), and install the bracket (F).
Install the bolt (A), then install the auxiliary under-hood fuse/relay box (B) to the mounting bracket (C).

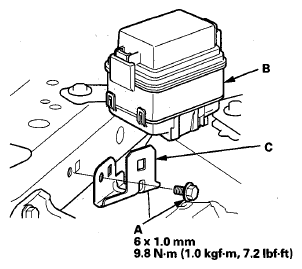

Fig 5: Auxiliary Under-Hood Fuse/Relay Box With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
