Rear Engine Mount Removal and Installation: Installation

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Install the rear engine mount (A) to the rear engine mount base (B).

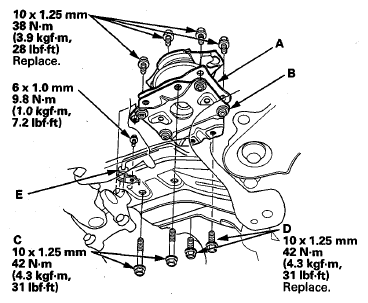

Fig 1: Locating Rear Engine Mount And Rear Engine Mount Base With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Align the rear engine mount base with its mounting holes and tighten the rear engine mount base mounting bolts (C) and new mounting bolts (D), then install the power steering line bracket (E).
Remove the jack and the wood block.
Install the rear warm up TWC (see REAR (BANK 1) ).
Lower the vehicle on the lift.
Tighten the new rear engine mount bolt (A), then install the rear engine mount stop (B) using new nuts.

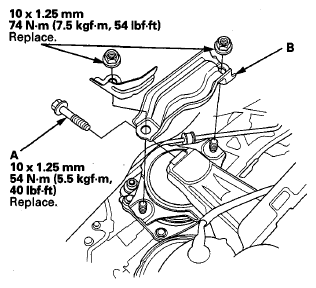

Fig 2: Locating Rear Engine Mount Bolt And Rear Engine Mount Stop With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
