Side Curtain Airbag(s)

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. The side impact sensor or the rear safing sensor must activate and send electrical signals to the microprocessor.
  2. The microprocessor must compute the signals and trigger the side curtain airbag and side airbag inflator(s).
  3. The triggered inflators must ignite and deploy the side curtain airbag and side airbag at the same time.

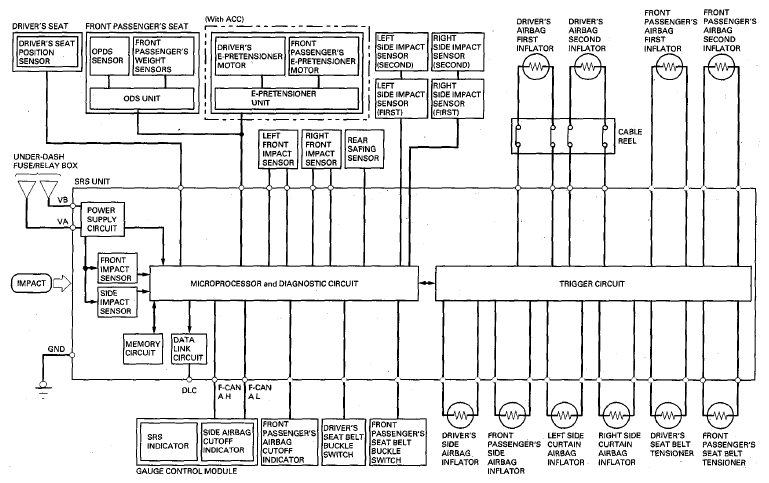

    Fig 1: Supplemental Restraint System - Circuit Diagram
    G08058291Courtesy of AMERICAN HONDA MOTOR CO., INC.
