CMBS and E-pretensioner Operation: Notes

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

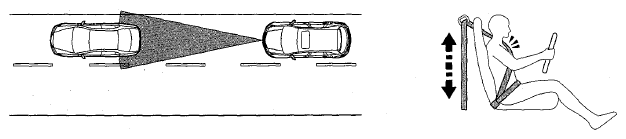

Approaching a vehicle ahead: When driving, the millimeter wave radar detects a vehicle ahead, and the system provides audible and visual warnings if it detects a risk of collision.

Fig 1: CMBS And E-Pretensioner Operation Diagram - Approaching Vehicle Ahead

Courtesy of AMERICAN HONDA MOTOR CO., INC.

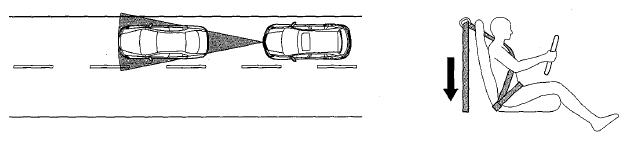

Closing on a vehicle ahead: The system applies light braking, and increases seat belt tension slightly to provide a tactile warning to the driver. The front passenger does not feel the tactile warning.

Fig 2: CMBS And E-pretensioner Operation Diagram - Closing On Vehicle Ahead

Courtesy of AMERICAN HONDA MOTOR CO., INC.

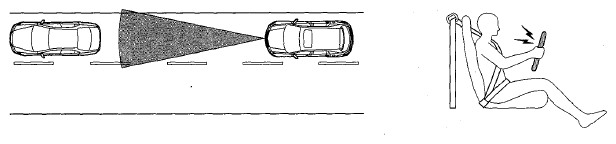

Collision unavoidable: The system activates strong braking, and securely tightens both the driver's and front passenger's seat belts to help reduce injury caused by the impact.

Fig 3: CMBS And E-Pretensioner Operation Diagram - Collision Unavoidable

Courtesy of AMERICAN HONDA MOTOR CO., INC.
