Side Impact Sensor (Second) Replacement: Installation

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Install the side impact sensor (second) (A) with a new TORX bolt (B) using a TORX T30 bit, then connect floor wire harness 2P connector (C) to the side impact sensor (second).

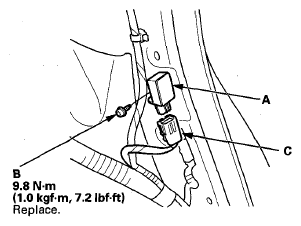

Fig 1: Floor Wire Harness 2P Connector, Side Impact Sensor And TORX Bolt With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Do the battery terminal reconnection procedure (see USING THE GR8 BATTERY DIAGNOSTIC STATION ).
Clear any DTCs with the HDS (see HOW TO CLEAR DTCS ).
Confirm proper SRS operation: Turn the ignition switch to ON (II); the SRS indicator should come on for about 6 seconds and then goes off.
Install the parts in the reverse order of removal.
