SRS Unit Replacement: Removal

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Do the battery terminal disconnection procedure (see USING THE GR8 BATTERY DIAGNOSTIC STATION ), then wait at least 3 minutes before starting work.
  2. Remove the driver's center console trim and passenger's center console trim (see CENTER ANCHOR BOLT CONSTRUCTION ).
  3. Disconnect SRS unit connectors A (39p), and B (39p) from the SRS unit (C).
    NOTE: The SRS unit connectors have lever locks. Release the locks before disconnecting the connectors (see SRS UNIT CONNECTORS  ).

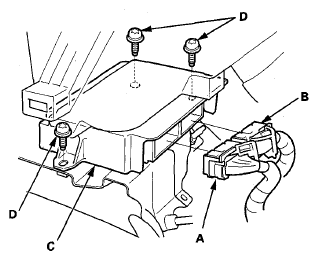

    Fig 1: Identifying SRS Unit, SRS Unit Connectors 39P And TORX Bolts
    G08058530Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the TORX bolts (D) using a TORX T30 bit, then remove the SRS unit.
