SRS Unit Replacement: Installation

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Install the SRS unit with new TORX bolts (A) using a TORX T30 bit, then connect the connectors (B) to the SRS unit; push them into position until they click.
NOTE: Be sure the SRS unit is sitting squarely against it's bracket before torquing the TORX bolt.

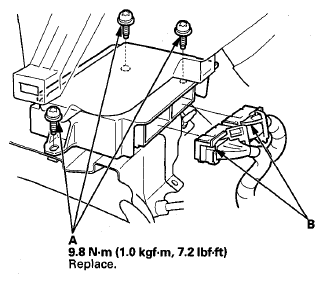

Fig 1: Identifying Connectors And TORX Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Reconnect both seat belt tensioner connectors (see GENERAL TROUBLESHOOTING INFORMATION ).
Do the battery terminal reconnection procedure (see USING THE GR8 BATTERY DIAGNOSTIC STATION ).
Make sure the SRS unit has the latest software. If it does not have the latest, update the software in the SRS unit (see SRS UNIT UPDATE ).
Do the front passenger's weight sensor initialization (see FRONT PASSENGER'S WEIGHT SENSOR INITIALIZATION ).
Check the operation of the ODS unit with the HDS (see ODS UNIT OPERATION CHECK ).
Confirm proper SRS operation: Turn the ignition switch to ON (II); the SRS indicator should come on for about 6 seconds and then goes off.
Install the parts in the reverse order of removal.
