Wiring Precautions

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Some of the SRS wiring can be identified by a special yellow outer covering and the SRS connectors can be identified by their yellow color. Observe the following instructions:

Never attempt to modify, splice, or repair SRS wiring. If there is an open or damage to the SRS wiring, replace the harness.

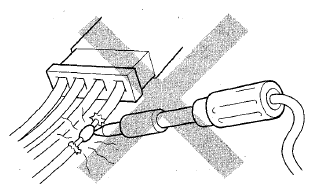

Fig 1: Caution For Repairing SRS Wiring
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Be sure to install the harness wires so they do not get pinched or interfere with other parts.

Fig 2: Caution For Proper Installation Of Harness Wires
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Make sure all SRS ground locations are clean, and the grounds are securely fastened for optimum metal-to-metal contact. Poor grounds can cause intermittent problems that are difficult to diagnose.
Do not use any silicone based cleaners or lubricants on any SRS connectors or terminals.
