Special Tools Required

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

SRS Short Canceller 070AZ-SAA0100

NOTE:

To prevent damage to the connector cavity, insert an SRS short canceller straight into the cavity from the terminal side.
Before installing an SRS short canceller, wash it with electrical contact cleaner, then dry it with compressed air.
Do not use an SRS short canceller if it is damaged.
Make sure to remove an SRS short canceller before reconnecting the SRS unit connector.
Some system store data in memory that is lost when the battery is disconnected. Before disconnecting the battery, refer to Battery Terminal Disconnection and Reconnection (see USING THE GR8 BATTERY DIAGNOSTIC STATION ).

When SRS unit connectors A (39P) and B (39P) are disconnected, a short circuit is automatically created in the connector to prevent accidental deployment of an airbag or tensioner. The circuit may need to be opened when diagnosing the system. Insert an SRS short canceller (070AZ-SAA0100) in the specified cavities when necessary to keep the circuit open for diagnosis.

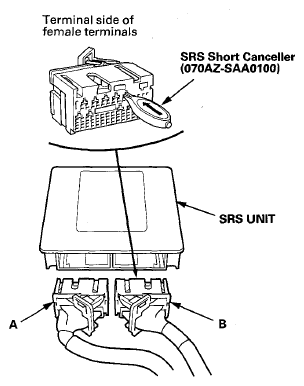

Fig 1: Identifying SRS Unit Connectors 39P And SRS Unit

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Terminal numbers are shown from the wire side of the female terminals. Insert the SRS short canceller(s) into the cavities on the terminal side of the connector.

Fig 2: Identifying SRS Unit Connector A 39P Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Identifying SRS Unit Connector B 39P Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.
