Disconnecting System Connectors

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch to LOCK (0). Disconnect the negative cable from the battery, then wait at least 3 minutes before starting work.

    Driver's Airbag

  2. Remove the access panel (A) from the steering wheel, then disconnect the driver's airbag inflator 4P connector (B) on the cable reel harness.
    Fig 1: Identifying Access Panel And Driver's Airbag Inflator 4P Connector
    G08058274Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Front Passenger's Airbag

  3. Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION ).
  4. Remove the connector clip (A), then disconnect the dashboard wire harness 4P connector (B) from the front passenger's airbag.

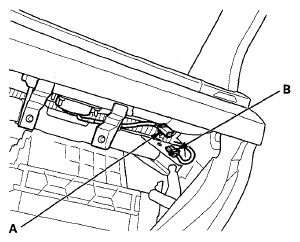

    Fig 2: Identifying Dashboard Wire Harness 4P Connector And Connector Clip
    G08058275Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Side Airbag

  5. Disconnect both floor wire harness 2P connectors (A) from the driver's and front passenger's side airbags.
    Fig 3: Identifying Both Floor Wire Harness 2P Connectors - Side Airbag
    G08058276Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Side Curtain Airbag

  6. Remove the quarter-pillar trim (see QUARTER PILLAR TRIM ).
  7. Disconnect both floor wire harness 2P connectors (A) from the left and right side curtain airbags.

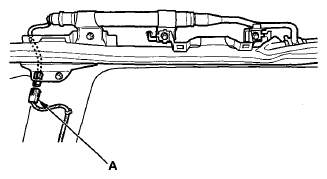

    Fig 4: Identifying Both Floor Wire Harness 2P Connectors - Side Curtain Airbag
    G08058277Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Seat Belt Tensioner

  8. Remove the B-pillar lower trim (see B-PILLAR UPPER/LOWER TRIM ).
  9. Disconnect both floor wire harness 4P connectors (A) from the driver's and the front passenger's seat belt tensioners.
    Fig 5: Identifying Both Floor Wire Harness 4P Connectors
    G08058278Courtesy of AMERICAN HONDA MOTOR CO., INC.

    SRS Unit

  10. Remove the center console trim (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  11. Disconnect SRS unit connectors A (39P) and B (39P) from the SRS unit.

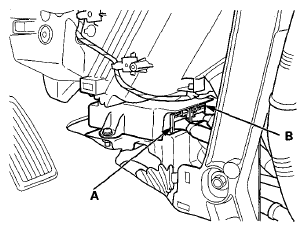

    Fig 6: Identifying SRS Unit Connectors 39P
    G08058279Courtesy of AMERICAN HONDA MOTOR CO., INC.
