Airbag Handling and Storage

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Do not disassemble an airbag. It has no serviceable parts. Once an airbag has been deployed, it cannot be repaired or reused.

For temporary storage of an airbag during service, observe the following precautions.

Store the removed airbag with the pad surface up. Never put anything on the airbag.

Fig 1: Identifying Proper Position Of Place Removed Airbag With Pad Surface Up
Courtesy of AMERICAN HONDA MOTOR CO., INC.
To prevent damage to the airbag, keep it away from any oil, grease, detergent, or water.

Fig 2: Caution For Handling Airbag
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Store the removed airbag on a secure, flat surface away from any high heat source (exceeding 200°F/93°C).

Fig 3: Caution For Storing Removed Airbag
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Never do electrical tests on the airbags, such as measuring resistance.
Do not position yourself in front of the airbag during removal, inspection, or replacement.

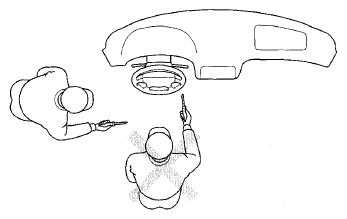

Fig 4: Caution For Positioning Yourself In Front Of Airbag
Courtesy of AMERICAN HONDA MOTOR CO., INC.
For proper disposal of a damaged airbag, refer to AIRBAG DISPOSAL
The side curtain airbag module assembly is a long, jointed part containing an inflator (A), a flexible bag (B), and brackets (C). When removing or installing the side curtain airbag inflator assembly, never:
- Handle the flexible bag.
- Drop the airbag assembly.
- Cut, tear, or unwrap the tape strips.

  Fig 5: Identifying Inflator, Flexible Bag And Brackets
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
