Front Passenger's Airbag Replacement: Installation

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Place the new front passenger's airbag (A) into the bracket. Tighten the front passenger's airbag mounting nuts (B) and mounting bolts (C).

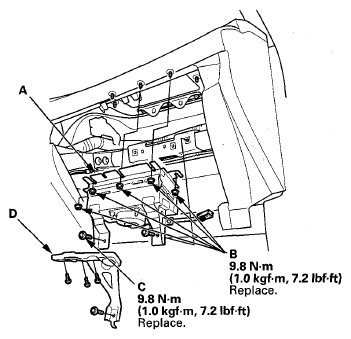

Fig 1: Front Passenger's Airbag, Mounting Nuts And Mounting Bolts With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the bracket (D).
Attach the connector clip (A), then connect the dashboard wire harness 4P connector (B) to the front passenger's airbag, then install the glove box (see GLOVE BOX REMOVAL/INSTALLATION ).

Fig 2: Identifying Dashboard Wire Harness 4P Connector And Connector Clip
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Do the battery terminal reconnection procedure (see USING THE GR8 BATTERY DIAGNOSTIC STATION ).
Clear any DTCs with the HDS.
After installing the airbag, confirm proper system operation: Turn the ignition switch to ON (II); the SRS indicator should come on for about 6 seconds and then goes off.
