Front Passenger's Airbag Cutoff Indicator Illumination Bulb Test/Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the dashboard center panel (see DASHBOARD CENTER PANEL REMOVAL/INSTALLATION ).
Disconnect the dashboard wire harness 6P connector (A) from the front passenger's airbag cutoff indicator (B).

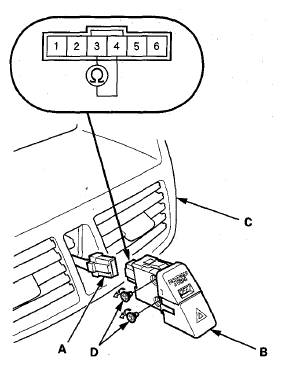

Fig 1: Identifying Dashboard Wire Harness 6P Connector, Front Passenger's Airbag Cutoff Indicator, Center Panel And Bulbs
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Push out the front passenger's airbag cutoff indicator from behind the center panel (C).
Check for continuity between the No. 3 and No. 4 terminals of the front passenger's airbag cutoff indicator. If there is no continuity, replace the bulbs (D).
NOTE: Both illumination bulbs are connected in parallel. If there is continuity, remove the lower, hazard warning switch illumination bulb, and recheck for continuity. If there is no continuity, replace the upper, front passenger's airbag cutoff indicator illumination bulb.
Install the parts in the reverse order of removal.
