E-Pretensioner Unit Replacement: Removal

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Do the battery terminal disconnection procedure (see USING THE GR8 BATTERY DIAGNOSTIC STATION ), then wait at least 3 minutes before starting work.
  2. Remove the passenger's center console trim (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  3. Disconnect the floor wire harness 5P connector (A) and 14P connector (B) from the E-pretensioner unit (C)

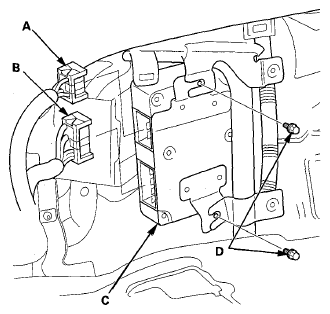

    Fig 1: Identifying E-pretensioner Unit, Floor Wire Harness 5P Connector And 14P Connector, Mounting Bolts
    G08058544Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the mounting bolts (D), then remove the E-pretensioner unit.
