E-Pretensioner Unit Replacement: Installation

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Install the E-pretensioner unit (A) with the mounting bolts (B).

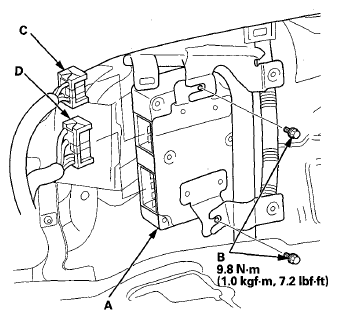

Fig 1: E-pretensioner Unit, Floor Wire Harness 5P Connector And 14P Connector, Mounting Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the floor wire harness 5P connector (C) and 14P connector (D) to the E-pretensioner unit.
Install the passenger's center console trim (see CENTER CONSOLE REMOVAL/INSTALLATION ).
Do the battery terminal reconnection procedure (see USING THE GR8 BATTERY DIAGNOSTIC STATION ).
Clear any DTCs with the HDS (see HOW TO CLEAR DTCS ).
Confirm proper SRS operation: Turn the ignition switch to ON (II), and check that the SRS indicator comes on for about 6 seconds and then goes off.
