Cable Reel Replacement: Installation

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before installing the steering wheel, align the front wheels straight ahead.
  2. If not already done, do the battery terminal disconnection procedure (see USING THE GR8 BATTERY DIAGNOSTIC STATION ), then wait at least 3 minutes before starting work.
  3. Set the turn signal canceling sleeve (A) so that the projections (B) are aligned vertically.
    Fig 1: Identifying Projections Alignment For Setting Turn Signal Canceling Sleeve
    G08058525Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Carefully install the cable reel (A) on the steering column shaft. Then connect dashboard wire harness 20P connector (B) to the cable reel, and connect the cable reel 4P connector (C) to the dashboard wire harness 4P connector (D).
    Fig 2: Identifying Cable Reel, Cable Reel 4P Connector, Dashboard Wire Harness 20P Connector And 4P Connector
    G08058526Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the steering column covers.
  6. Before installing the steering wheel, make sure the front wheels are pointing ahead, then center the cable reel (A). Do this by first rotating the cable reel clockwise until it stops. Then rotate it counterclockwise (about three turns) until the arrow mark (B) on the cable reel label points straight up.

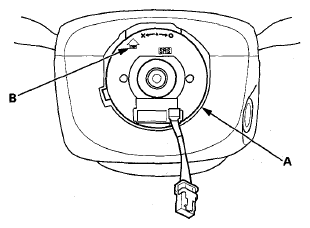

    Fig 3: Identifying Cable Reel And Arrow Mark
    G08058527Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Position the two tabs (A) of the turn signal canceling sleeve (B) as shown, and install the steering wheel on to the steering column shaft, making sure the steering wheel hub (C) engages the pins (D) of the cable reel and tabs of the turn signal canceling sleeve. Do not tap on the steering wheel or steering column shaft when installing the steering wheel.

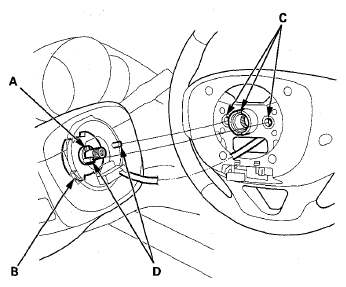

    Fig 4: Identifying Tabs, Turn Signal Canceling Sleeve, Steering Wheel Hub And Pins
    G08058528Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Install the steering wheel bolt (A) and tighten it to the specified torque, then connect the cable reel sub harness 20P connector (B).

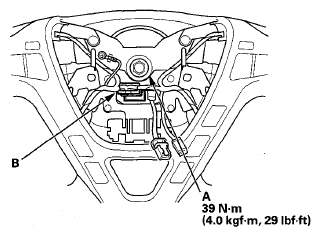

    Fig 5: Cable Reel Sub Harness 20P Connector And Steering Wheel Bolt With Torque Specification
    G08058529Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Install the driver's airbag (see DRIVER'S AIRBAG REPLACEMENT  ).
  10. Do the battery terminal reconnection procedure (see USING THE GR8 BATTERY DIAGNOSTIC STATION ).
  11. Clear any DTCs with the HDS (see HOW TO CLEAR DTCS  ).
  12. After installing the cable reel, confirm proper system operation:
    • Turn the ignition switch to ON (II); the SRS indicator should come on for about 6 seconds and then goes off.
    • After the SRS indicator has turned off, turn the steering wheel fully left and right to confirm the SRS indicator does not come on.
    • Make sure the horn and turn signal switches work properly.
    • Make sure the cruise control combination switch work.
    • Make sure the audio remote switch work.
    • Make sure the multi-information switch work.
    • Make sure the HFL-navigation voice control switch (with navigation) work.
    • Make sure the HFL switch (without navigation) work.
    • Make sure the distance switch work.
  13. After installation, check the steering wheel spoke angle. If the steering spoke angles to the right and left are not equal (steering wheel is not centered), correct the engagement of the wheel/column shaft splines.
