Deploying Components Out of the Vehicle

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

If an intact airbag or tensioner has been removed from a scrapped vehicle, or has been found defective or damaged during transit, storage, or service, it should be deployed as follows:

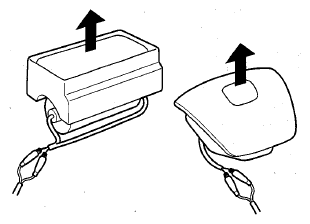

Fig 1: Identifying Proper Way Of Deploying Components Out Of Vehicle

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Confirm that the deployment tool is functioning properly by following the check procedure Deploying Airbags in the Vehicle on the tool label.
Position the airbag face up, outdoors, on flat ground, at least 10 m (30 ft) from any obstacles or people.
Follow steps 10 through 13 of the in-vehicle deployment procedure.
NOTE: The driver's and front passenger's airbags have dual inflators. Twist each pair of unlike colored wires together, and clip an alligator clip to each pair.
