Headlight Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  2. Remove the connectors (A) from the headlight assembly (B).

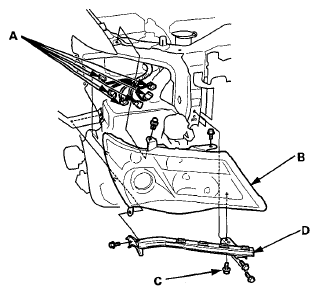

    Fig 1: Identifying Connectors, Headlight Assembly, Bolt And Corner Upper Beam
    G08055318Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the clips and bolts, then remove the headlight.
  4. Remove the bolt (C) and the corner upper beam (D) from the headlight.
  5. Install the headlight in the reverse order of removal.
  6. After the replacement, do the headlight initial position learning procedure (see HEADLIGHT INITIAL POSITION LEARNING PROCEDURE ) and adjust the headlight
