Fog Light/Daytime Running Light Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  2. Disconnect the 2P connectors (A) from the fog light and the daytime running light (B).

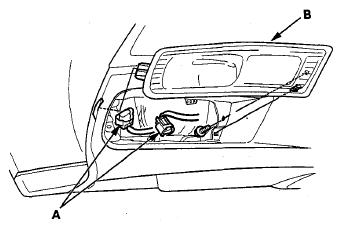

    Fig 1: Disconnecting 2P Connectors From Fog Light And Daytime Running Light
    G08055327Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the screw, then remove the light.
  4. Install the light in the reverse order of removal.
  5. After replacement, adjust the fog lights/daytime running lights
