Fog Light/Daytime Running Light Bulb Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the inner fender (see FRONT INNER FENDER REPLACEMENT ).
Disconnect the 2P connectors (A) from the fog lights/daytime running lights (B).
Fog Light: 55 W

Daytime Running Light: 60 W

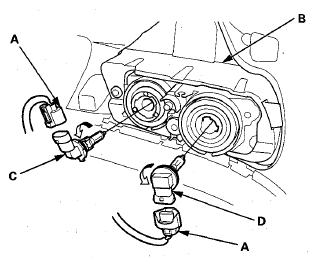

Fig 1: Disconnecting 2P Connectors (A) From Fog Lights/Daytime Running Lights (B)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Turn the fog light bulb socket (C) and the daytime running light bulb socket (D) 45 ° counterclockwise to remove them from the housing.
Install the new bulb(s) in the reverse order of removal.

Make sure the bulb(s) are fully sealed in the housing and locked into place.

NOTE: Do not touch the glass of the bulb with your hands. If necessary, clean the glass area with alcohol.
