Circuit Diagram - Fog Lights

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

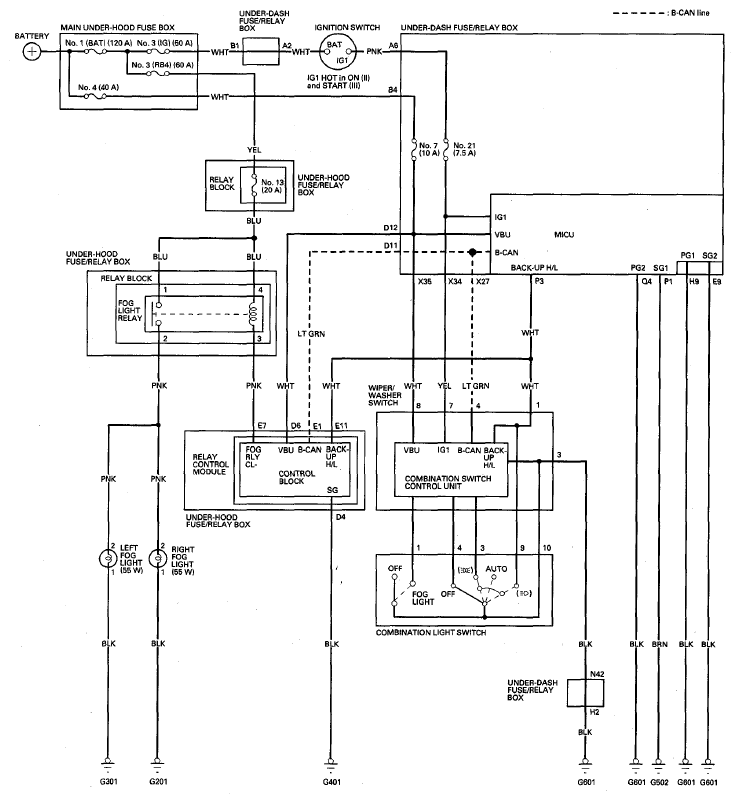

Fig 1: Fog Lights - Circuit Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.
