Headlight Bulb (High Beam)

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front bulkhead cover (see FRONT BULKHEAD COVER REPLACEMENT ).
For the left headlight, remove the battery hold-down plate, then slide the battery to access the bulb.
For the right headlight, remove the power steering fluid reservoir to access the bulb.
Disconnect the 2P connector (A) from the headlight bulb socket (B).
Headlight Bulb: 60 W

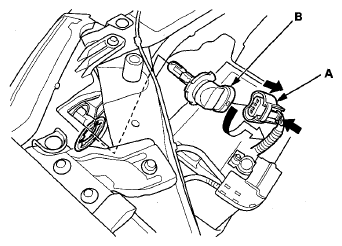

Fig 1: Disconnecting 2P Connector From Headlight Bulb Socket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Turn the bulb socket 45 ° counterclockwise to remove it from the headlight housing.
Install a new bulb in the reverse order of removal. Make sure the notches in the bulb align with the tabs in the headlight.

NOTE: Do not touch the glass of the bulb with your hands. If necessary, clean the glass area with alcohol.
