Front Turn Signal Light Bulb

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bulkhead cover (see FRONT BULKHEAD COVER REPLACEMENT ).
  2. Disconnect the 2P connector (A) from the bulb socket (B).

    Front Turn Signal Light Bulb: 21 W

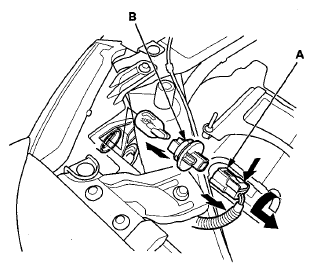

    Fig 1: Disconnecting 2P Connector From Bulb Socket
    G08055324Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Turn the bulb socket 45 ° counterclockwise to remove it from the headlight housing.
  4. Install a new bulb in the reverse order of removal.
