Front Side Marker Light Bulb

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the 2P connector (A) from the front turn signal/front parking light.

    Front Side Marker Light Bulb: 3 CP

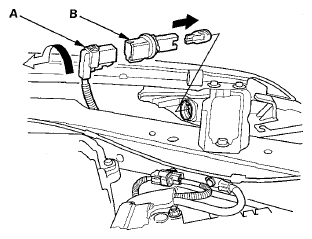

    Fig 1: Disconnecting 2P Connector From Front Turn Signal/Front Parking Light
    G08055325Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Turn the bulb socket (B) 45 ° counterclockwise to remove it from the headlight housing.
  3. Install a new bulb in the reverse order of removal.
