Back-up Light Bulb

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the maintenance lid (A).
  2. Disconnect the 2P connector (B) from the back-up light bulb socket (C).

    Back-up light Bulb: 18W

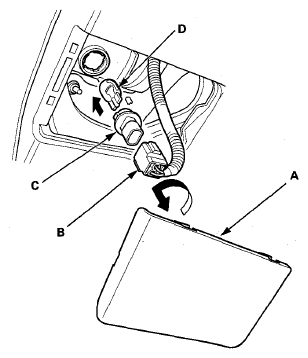

    Fig 1: Disconnecting 2P Connector From Back-Up Light Bulb Socket
    G08055326Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Turn the bulb socket 45 ° counterclockwise to remove it from the taillight housing.
  4. Install a new bulb in the reverse order of removal.
