Rear Strake Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

Remove the screw (A) and the clips (B), then remove the rear strake (C) from the rear inner fender cover (D) and the side sill panel (E).

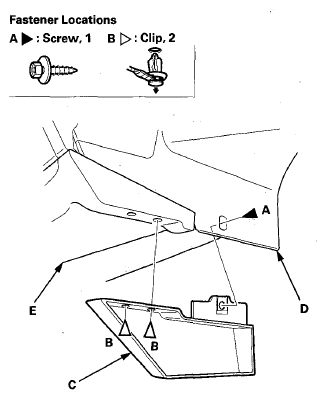

Fig 1: Locating Screw, Clips, Rear Strake, Rear Inner Fender Cover And Side Sill Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the strake in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
