Left Front Splash Guard Reinforcement Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Take care not to scratch the body.

Remove these items:
- Left front inner fender, as needed (see FRONT INNER FENDER REPLACEMENT )
- Left side sill panel (see SIDE SILL PANEL REPLACEMENT )
Remove the bolts, then remove the left front splash guard reinforcement (A).

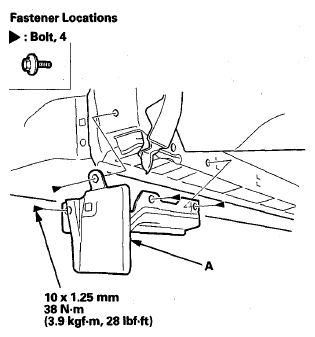

Fig 1: Locating Left Front Splash Guard Reinforcement With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the reinforcement in the reverse order of removal.
