Front Strake Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Take care not to scratch the body.

Remove the bolts, then remove the front strake (A) from the front inner fender (B).

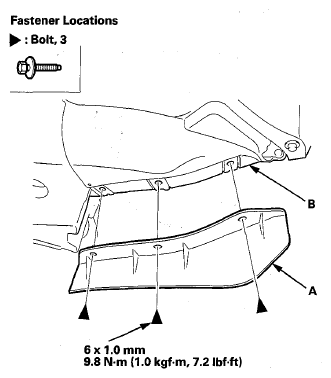

Fig 1: Locating Bolts, Front Strake And Front Inner Fender With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the strake in the reverse order of removal.
