Intermediate Shaft Removal

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the transmission fluid. Reinstall the drain plug using a new sealing washer (see ATF REPLACEMENT ).
  2. Remove the right driveshaft (see DRIVESHAFT REMOVAL  ).
  3. Remove the shift cable cover (A).

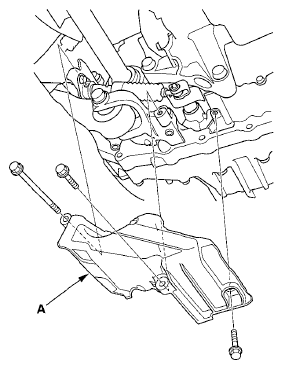

    Fig 1: Identifying Shift Cable Cover
    G05958885Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the heat shield (A).

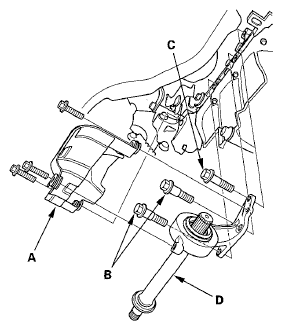

    Fig 2: Identifying Heat Shield, Dowel Bolts, Flange Bolt & Intermediate Shaft
    G05958886Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the two dowel bolts (B) and the flange bolt (C).
  6. Remove the intermediate shaft (D) from the differential. Hold the intermediate shaft horizontally until it is clear of the differential to prevent damaging the oil seal.
